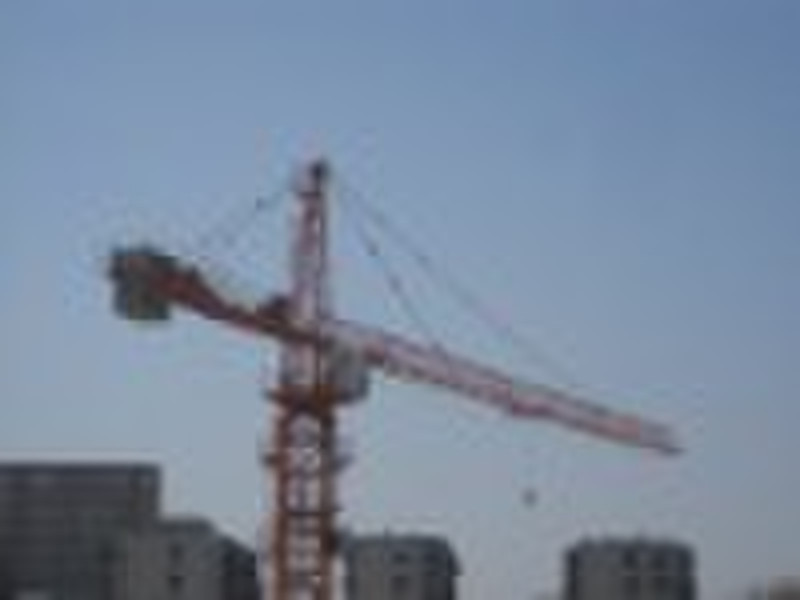

Tower crane TC6516Q(QTZ160)

Tower Crane Features: This series of tower cranes have a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism. It is original in design, reliable in operation and satisfactory in shape. Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency. Components : 1. Hoisting System 2. Climbing System 3. Trolley System 4. Slewing System 5. Electrical System 6. Crane Jib 7. Counter Jib 8. Mast Sections 9. Tower Head 10. Control Cabin Specification: ModelTC6516Q(TZ160) TC5518(QTZ125)TC5515(QTZ100A)Amplitude (M)655555Independent Height (M)5046/5250/50Max. Height (M)190200180Max. Lifting Capacity (T)1088Assistant Support Frame664Main Material135×135×12 (square steel tube)135×135×12(square steel tube)135×135×12(square steel tube)Standard Mast Section Dimension1.935×1.935×2.81.835×1.835×2.51.835×1.835×2.5Lifting Speed (a=2)(m/min)100/50100/50100/50Slewing Speed (r/min)0.610.60.55Trolley Travel Speed (m/min)60/30/1060/30/1060/30/10Max. Lifting Moment (KNm)160012501000Working Temperature (C)20 +4020 +4020 +40Undercarriage FormFour Landing LegsWithout Ballast Type A. Cross-shaped beam with slanting strut and ballastType B. Cross-shaped beam with slanting strut but no ballastType A. Cross-shaped beam with slanting strut and ballastType B. Cross-shaped beam with slanting strut but no ballast After-Sales Service : 1. Erection and Commissioning 2. Operator Training 3. Overhual Zhengzhou Mega Industry Co., Ltd. is specified in machinery producing and fused alumina producing.Our factory is founded at 1961,covers 160000m2,has 1600 employees
